1. Purpose

- Support users to view detailed vehicle operating speed updated every second, thereby having a basis to check speed violation time.

2. Implementation conditions

- Users are authorized to Vehicle speed Report in the Authorization function of the system.

3. Implementation instructions

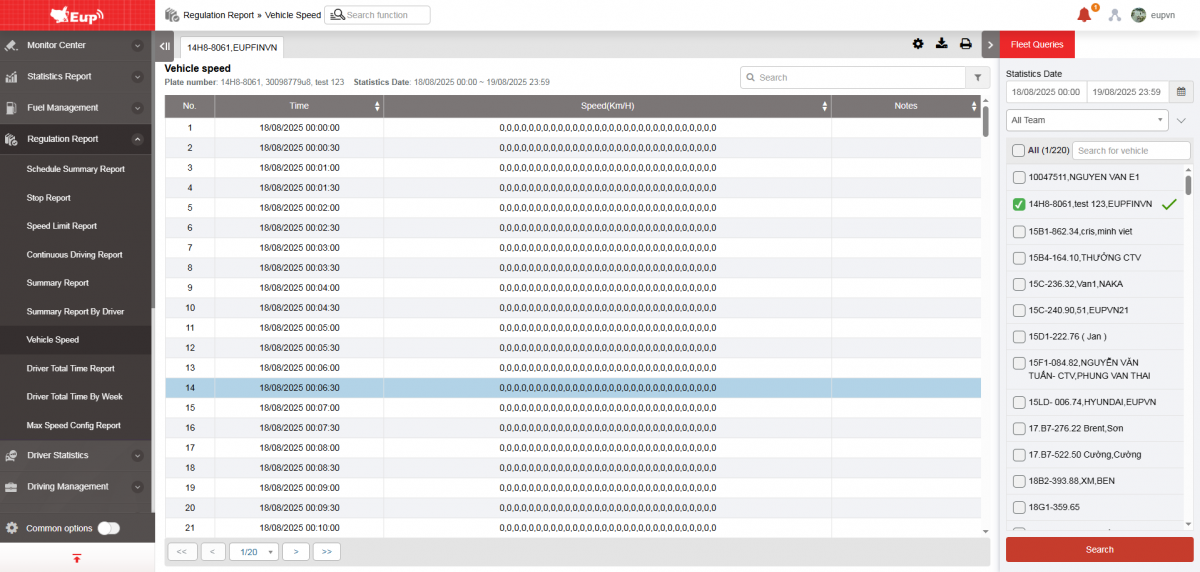

- Go to the Regulation Report/Vehicle speed.

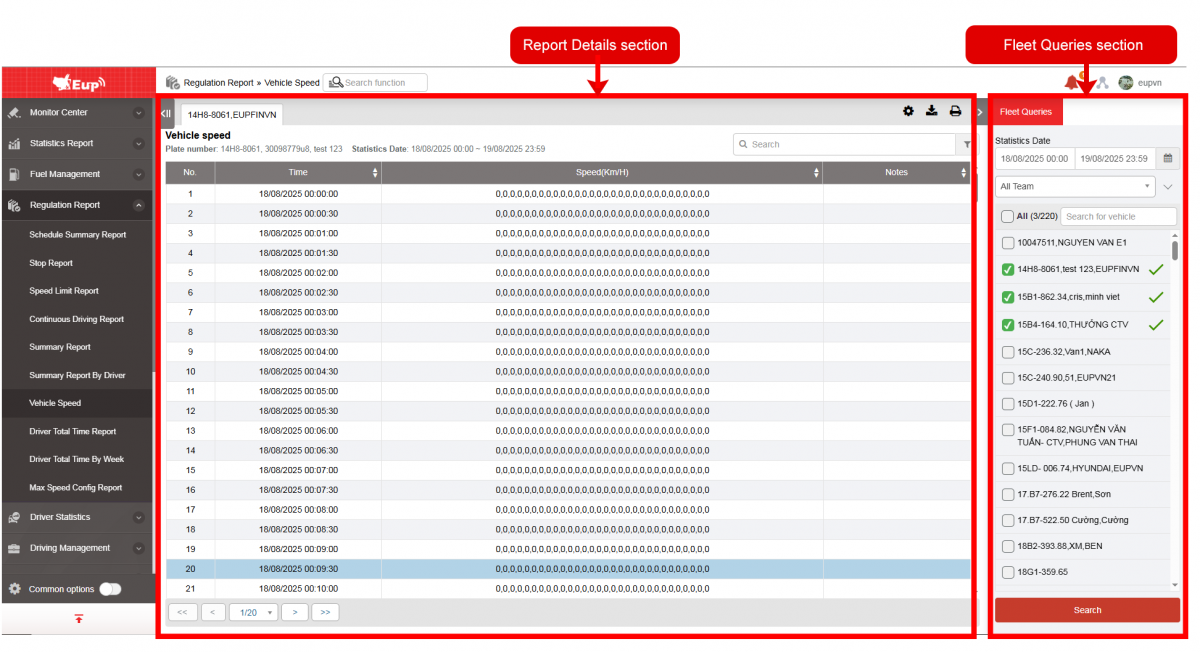

- The display function screen consists of 2 parts:

+ Fleet Queries section allows users to search for the operating speed of one or more vehicles over a certain period of time;

+ Report Details section shows the detailed speed of each vehicle over time.

+ Fleet Queries section: the user selects the following information:

• From: The user enters the first day to create the report;

• To: The user selects the last day to create the report;

• Select the icon   to select the team;

• In the vehicle list: Check the checkbox to select the vehicle to report;

• Click Search button to display the report in the Report Details section.

+ Report Details: Allows users to check the vehicle's operating speed in specific seconds. The information in this section includes:

• Time: Update every 30s;

• Speed (km/h): Display speed range according to 30s data update;

• Notes: Display if available;

+ Select the icon   to print the report

+ Select the icon   to download the report as excel

+ Select the icon   to Custom Field, Plate number field settings, Print signature settings
