1. Purpose

- Support users to monitor vehicle operating status directly with images or review images recorded during the vehicle's route.

2. Implementation conditions

- Users are assigned functional authority on the CRM system.

3. Implementation instructions

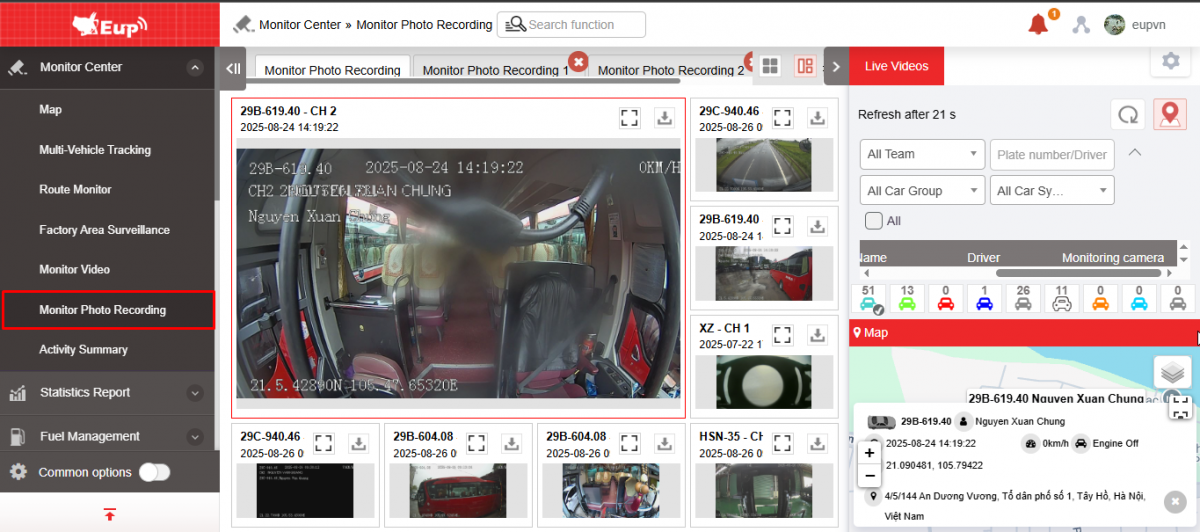

- Go to Monitor center/Monitor photo recording

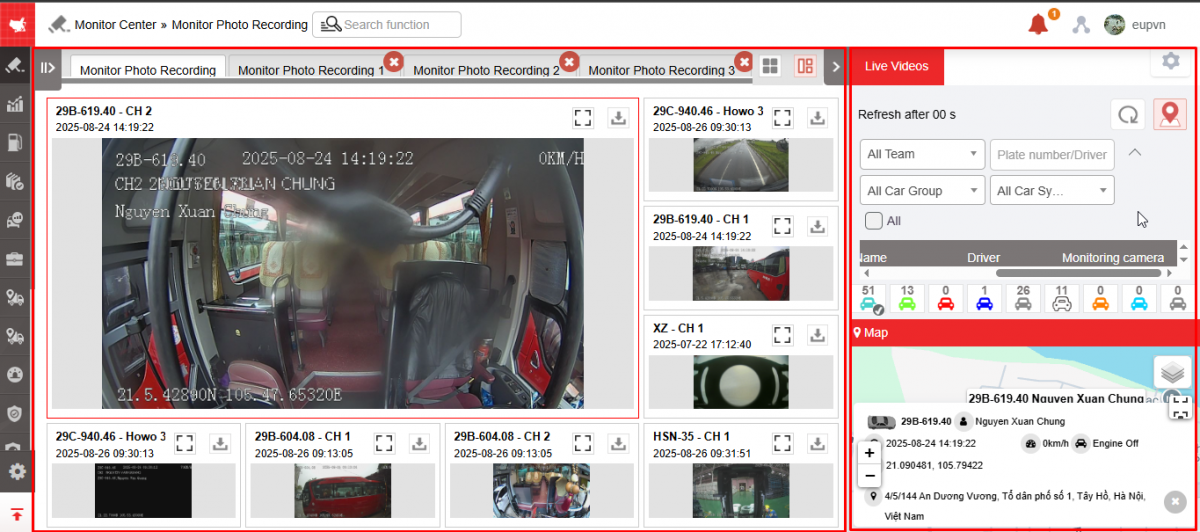

- The function display screen consists of 2 parts:

+ Monitor photo recording section displays live monitoring images of the vehicle;

+ Video lives section displays the vehicle list and number of cameras

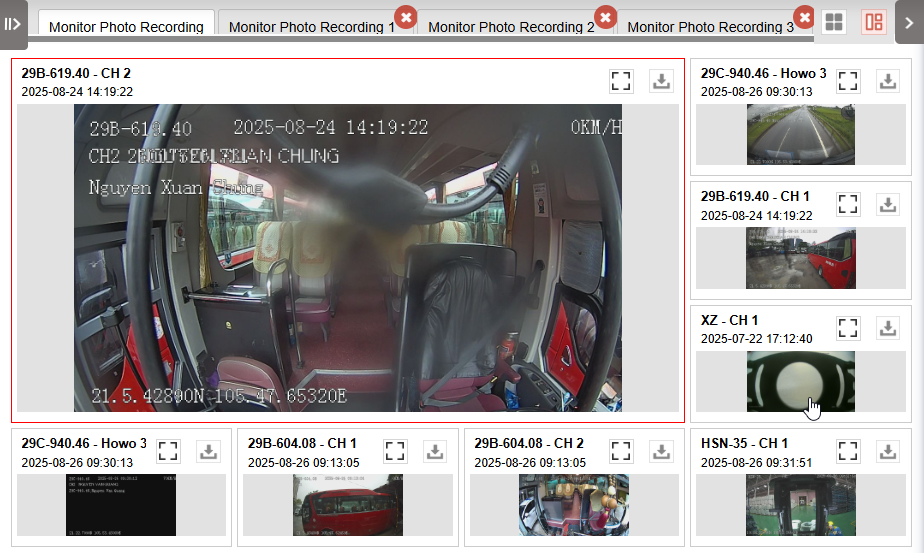

+ Monitor photo recording:

• Display live images with information including: Plate number, camera name, update time

• Click  to expand image

• Click to download image

• Click   to select photo frame mode

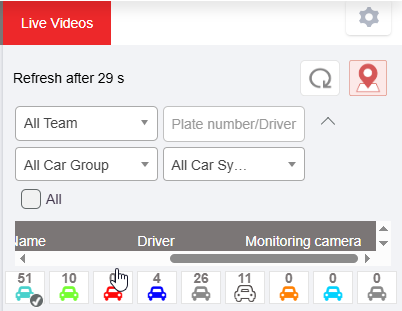

+ Live videos section to select search parameters

• Select the fleet (Already installed in Settings/Permissions setting), Select the Plate number, Select the camera to view or select the checkbox All

• Vehicle information columns include:

  • Status: Vehicle running, Stopped without turning off engine, Parked, Lost signal

  • Plate number

  • Car name

  • Driver: according to card swipe or assign name directly at Setting/Basic information/Car information

  • Monitoring camera: Select the camera to view

• List of vehicles by status

• Click   to update latest image

• Click to see the car on the map

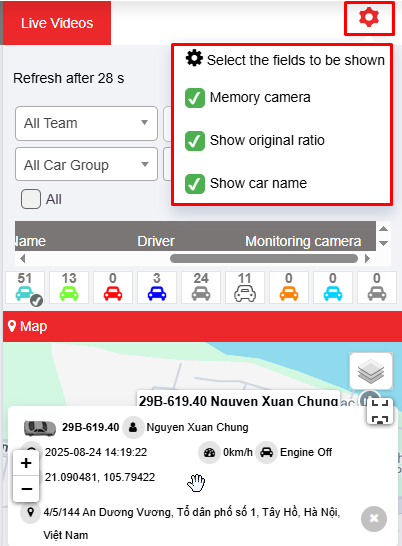

• Click  to set the fields to be shown, select the checkbox Memory camera, Show original ratio, Show car name
